উৎপত্তি স্থল:
চীন জাপান
পরিচিতিমুলক নাম:
QIEAL ZH
মডেল নম্বার:
90363-40034

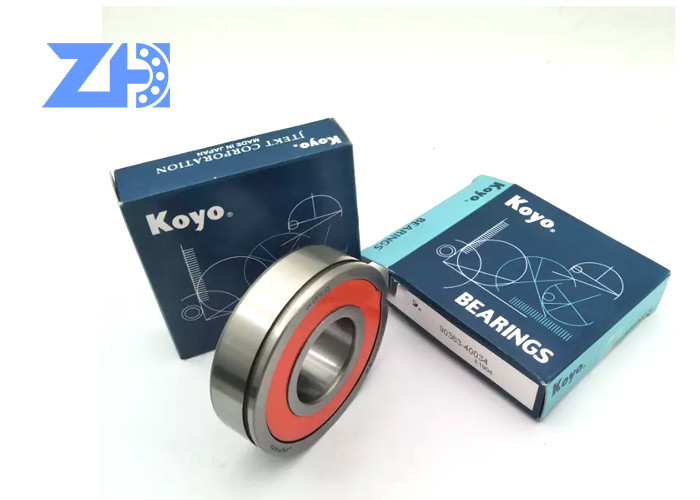

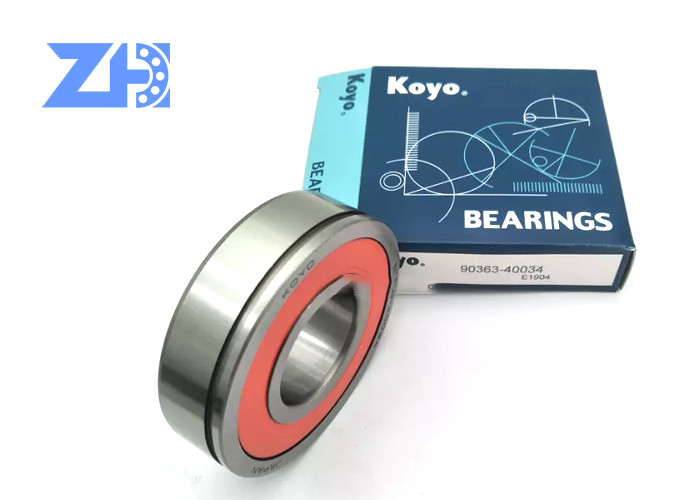

90363-40034 স্বয়ংক্রিয় বিয়ারিং (আউটপুট রিয়ার এক্সেলের জন্য) 90363-40034 আকার 40X92X25.5 মিমি
| অভ্যন্তরীণ ব্যাস (মিমি) d | 40 |
| বাহ্যিক ব্যাস (মিমি) ডি | 92 |
| প্রস্থ (মিমি) বি | 26 |
| সি(মিমি) | 37 |
| উপাদান | ক্রোম ইস্পাত |
| সিল টাইপ | খোলা, RZ, 2RS, 4RS |
| সহনশীলতা | P0, P6, P5, P4, P2 |
| ক্লিয়ারেন্স | C2, C0, C3, C4, C5 |
| নয়েজ লেভেল | Z, Z1, Z2, Z3 |
| MOQ | 10 টুকরো |
| আবেদন | পিছনের চাকা হাব |
| NO থাকার. | মাত্রা (মিমি) | |||
| ডি | ডি | খ | Ç | |
| DAC42840039 | 42 | 84 | 39 | 39 |
| DAC43760043 | 43 | 76 | 43 | 43 |
| DAC43790041/38 | 43 | 79 | 41 | 38 |
| DAC43800038 | 43 | 80 | 38 | 38 |
| DAC43800050/45 | 43 | 80 | 50 | 45 |
| DAC43820045 | 43 | 82 | 45 | 45 |
| DAC43(45)820037 | 43/45 | 82 | 37 | 37 |
| DAC43(45)850037 | 43/45 | 85 | 37 | 37 |
| DAC44825037 | 44 | ৮২.৫ | 37 | 37 |
| DAC45800045 | 45 | 80 | 45 | 45 |
| DAC45800045B | 45 | 80 | 45 | 45 |
| DAC45840041/39 | 45 | 84 | 41 | 39 |
| DAC45840042/40 | 45 | 84 | 42 | 40 |
| DAC45840039 | 45 | 84 | 39 | 39 |
| DAC45840045 | 45 | 84 | 45 | 45 |
| DAC45850023 | 45 | 85 | 23 | 23 |
| DAC458500302 | 45 | 85 | 30.2 | 30.2 |
| DAC45850041 | 45 | 85 | 41 | 41 |
| DAC48890044/42 | 48 | ৮৯ | 44 | 42 |
| DAC49880046 | 49 | ৮৮ | 46 | 46 |
| DAC50370819033/28 | 50.37 | ৮১.৯ | 33 | 28 |
| DAC50370819033/28A | 50.37 | ৮১.৯ | 33 | 28 |
| DAC50900034 | 50 | 90 | 34 | 34 |
| DAC70100028 | 70 | 100 | 28 | 28 |
| DAC70100032 | 70 | 100 | 32 | 32 |
| DAC70100032A | 70 | 100 | 32 | 32 |
| DAC70100032B | 70 | 100 | 32 | 32 |
| DAC76237920822/19 | 76,237 | 92.08 | 22.2 | 19 |
| DAC76415920822/19 | 76,415 | 92.08 | 22.2 | 19 |
| না থাকা | DIMENSION মিমি | |||
| ডি | ডি | খ | Ç | |
| DAC39(41)750037B | 39/41 | 75 | 37 | 37 |
| DAC40750037B | 40 | 75 | 37 | 37 |
| DAC35720033B | 35 | 72 | 33 | 33 |
| DAC35660037B | 35 | 66 | 37 | 37 |
| DAC43(45)820037B | 43/45 | 82 | 37 | 37 |
| DAC45840039A | 45 | 84 | 39 | 39 |
| DAC42820037A | 42 | 82 | 37 | 37 |
| DAC408402538B | 40 | ৮৪,০২৫ | 38 | 38 |
| DAC30600337D | 30 | 60.03 | 37 | 37 |
| DAC37740437 | 36.98 | 74.04 | 37 | 37 |
| DAC39720438 | 39 | 72.04 | 38 | 38 |
| DAC49900045 | 49 | 90 | 45 | 45 |
| DAC42820036B | 42 | 82 | 36 | 36 |
| DAC43(45)820037C | 43/45 | 82 | 37 | 37 |
| DAC28600338/37 | 28 | 60.03 | 38 | 37 |
| DAC28580042B | 28 | 58 | 42 | 42 |
| DAC35720433A | 35 | 72.04 | 33 | 33 |
| DAC35720433B | 35 | 72.04 | 33 | 33 |
| DAC38(40)720041/37 | 38/40 | 72 | 42 | 37 |
| DAC38710039 | 38 | 71 | 39 | 39 |
| DAC38720236(33) UM | 37.99 | 72.02 | 36 | 33 |
| DAC38740236(33) UM | 37.99 | 74.02 | 36 | 33 |
| DAC40720836 | 40 | 72.08 | 36 | 36 |
| DAC40740042A | 40 | 74 | 42 | 42 |
| DAC40740042B | 40 | 74 | 42 | 42 |
| DAC44840042 | 44 | 84 | 42 | 42 |
| না থাকা | DIMENSION মিমি | |||
| ডি | ডি | খ | Ç | |
| DAC35650035B | 35 | 65 | 35 | 35 |
| DAC35650037 | 35 | 65 | 37 | 37 |
| DAC35660032 | 35 | 66 | 32 | 32 |
| DAC35660033 | 35 | 66 | 33 | 33 |
| DAC35660037 | 35 | 66 | 37 | 37 |
| DAC35660037A | 35 | 66 | 37 | 37 |
| DAC35680037 | 35 | 68 | 37 | 37 |
| DAC35680037A | 35 | 68 | 37 | 37 |
| DAC35680037B | 35 | 68 | 37 | 37 |
| DAC34990680233/30 | 34.99 | ৬৮.০২ | 33 | 30 |
| DAC35680039/36 | 35 | 68 | 39 | 36 |
| DAC35720028 | 35 | 72 | 28 | 28 |
| DAC35720228 | 35 | 72.02 | 28 | 28 |
| DAC35720033 | 35 | 72 | 33 | 33 |
| DAC35720033A | 35 | 72 | 33 | 33 |
| DAC35720433 | 35 | 72.04 | 33 | 33 |
| DAC35720233/31 | 35 | 72.02 | 33 | 31 |
| DAC35720034 | 35 | 72 | 34 | 34 |
| DAC35720034A | 35 | 72 | 34 | 34 |
| DAC36680033 | 36 | 68 | 33 | 33 |
| DAC36720534 | 36 | 72.05 | 34 | 34 |
| DAC37720033 | 37 | 72 | 33 | 33 |
| DAC37720037 | 37 | 72 | 37 | 37 |
| DAC37720237 | 37 | 72.02 | 37 | 37 |
| DAC37720437 | 37 | 72.04 | 37 | 37 |
| DAC37740045 | 37 | 74 | 45 | 45 |
| DAC37990710033/30 | 37.99 | 71 | 33 | 30 |
| DAC38100700037 | 38.1 | 70 | 37 | 37 |
| DAC38700037 | 38 | 70 | 37 | 37 |
| DAC38700038 | 38 | 70 | 38 | 38 |
| DAC38700038B | 38 | 70 | 38 | 38 |
| DAC37990710233/30 | 37.99 | 71.02 | 33 | 30 |
| DAC38720236/33B | 38 | 72.02 | 36 | 33 |
| DAC38720040 | 38 | 72 | 40 | 40 |
| DAC37990720236/33 | 37.99 | 72.02 | 36 | 33 |
